Detailinformationen

Marke:	Texin	Leistung:	50W
Frequenz:	400-3800 MHz	Stromspannung:	24-28V
Gewinnen:	47dbm	Typ:	Störmodul
Anwendung:	Schlüsselbereichsschutz	Größe:	1305319
Gewicht:	263g
Hervorheben:	800MHz UAV signal jammer module , 2.4GHz drone jammer for air safety , 24V wide coverage drone jammer

Produkt-Beschreibung

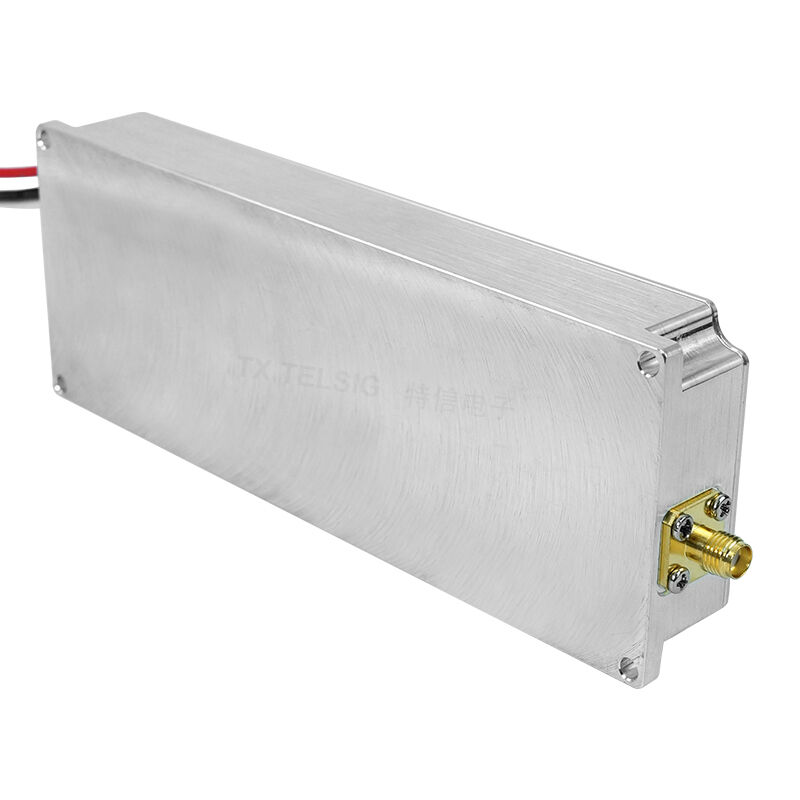

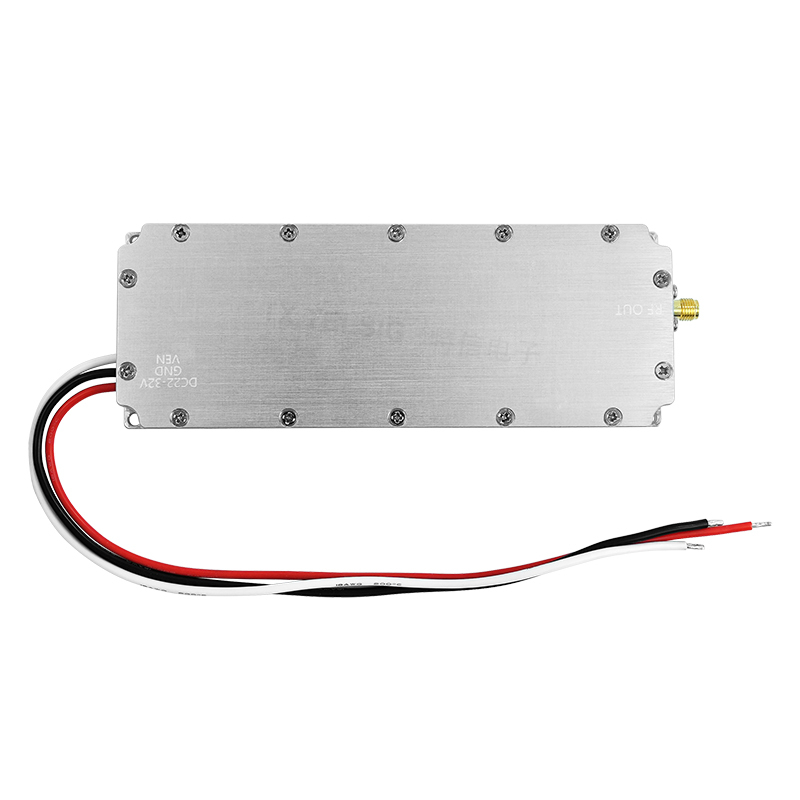

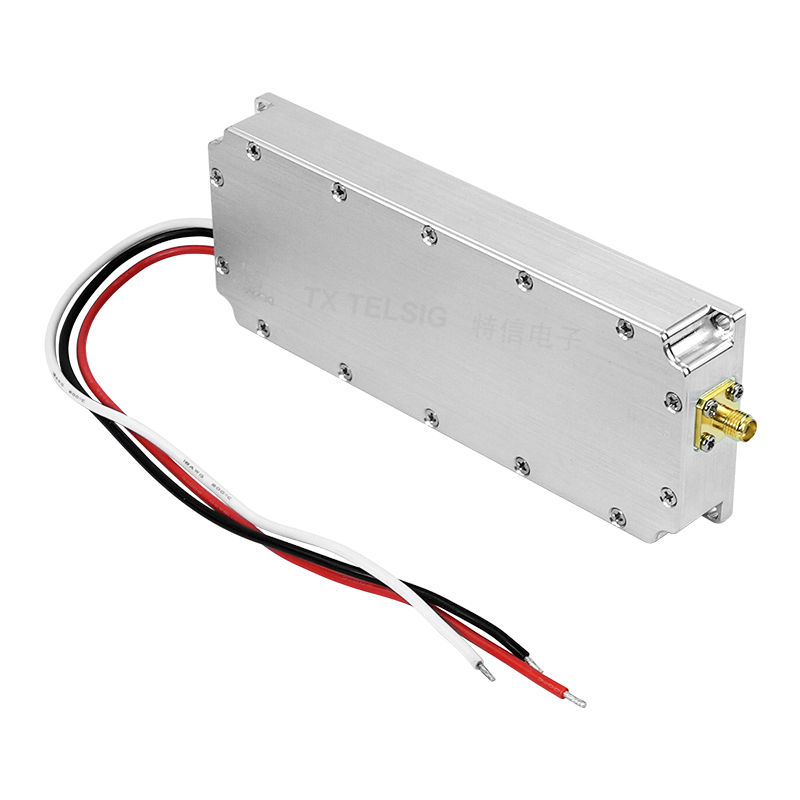

Wide Coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV Signal Jammer Module for Air Safety

Texin 50W 400-3800MHz drone jamming module, customizable to any frequency band within 400-3800MHz. Each module supports a bandwidth of 200MHz-300MHz. A single module can be matched with two voltages of 24-28V. It can suppress the frequency bands of various mainstream drones on the market, including 800MHz, 900MHz, 1.2GHz, and 2.4GHz. It can be used for low-altitude safety protection.

Key Features

Multiple modules interfere with multiple frequency bands to achieve full-band coverage
In unobstructed environments, it can be jammed from a distance, thus mitigating the threat posed by drones in advance
Uses gallium nitride material, resulting in low power consumption and long lifespan
Can be matched with a variety of voltages and is suitable for various operating environments
High-performance aluminum casing, waterproof, high temperature resistant, and highly conductive
Compact structure, lightweight, easy to install and carry
Smooth bandwidth, stable output, and good interference resistance

Technical Specifications

No.	Item	Data	Unit	Notes
1	Frequency	400-3800	MHz
2	Work Temperature	-20~+70	℃
3	Max Output Power	50	W
4	Work Voltage	DC24-28	V
5	Max Gain	47	dB
6	Flatness	±3	dB
7	Max Current	7	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	5313919	mm
15	Weight	0.263	Kg

Applications

VIP privacy protection: Preventing illegal drones from tracking important clients
Airports: Preventing drone interference with flight paths
Agriculture: Preventing drone-based crop poisoning
Schools: Educational materials for student learning
Downtown areas: Combating terrorist drone attacks
Government security departments: Combating illegal and criminal activities

After Service

1. Purchased Texin products come with a 1-year warranty.

2. Includes technical specifications and user manual.

3. We provide technology support after buying our products.

FAQ

How much does this drone signal jammer module cost?

The newest price please contact us, we use tiered pricing; the more you buy, the better the value for money.

What is the minimum purchase quantity?

One order is supported; free samples are not available.

What is the delivery time?

Delivery typically takes 5-7 working days after payment. For bulk orders, delivery time requires negotiation.
