Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety

Grundlegende Informationen

Herkunftsort:	China
Markenname:	TeXin
Zertifizierung:	CE ISO
Modellnummer:	TX-CD20W

Min Bestellmenge:	1
Preis:	Verhandelbar
Verpackung Informationen:	Dauerhafter Fall oder Kasten
Lieferzeit:	5-8 Tage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	100000MONATEN

Bestpreis Kontakt

Detailinformationen

Leistung:	20W	Frequenz:	10–18 GHz
Stromspannung:	28V	Aktuell:	4.2
Gewicht:	164g	Größe:	806016mm
Anwendung:	Anti -Drohnen -System	Material:	Aluminium
Stecker:	SMA
Hervorheben:	28V broadband PA power amplifier , 10-18GHz RF power amplifier module , 0dB input signal safety amplifier

Produkt-Beschreibung

Texin 28V 0dB Input 10-18GHz Broadband Power Amplifier Module

Designed specifically for signal security applications, this broadband power amplifier module offers comprehensive 10-18GHz coverage with bidirectional connector amplification, low 0dB input requirement, and high stability 20W output. Compatible with standard 28V power supply, it eliminates the need for additional preamplification for easy and efficient deployment.

Product Overview

The 10-18GHz 20W solid-state power amplifier from Texin Electronics incorporates advanced protection features including temperature and overcurrent protection. Its compact design ensures convenient portability and installation, while delivering high reliability, efficiency, and smooth output performance.

Technical Specifications

Parameter	Value	Unit
Frequency Range	10-18	GHz
Operating Voltage	28	V
Current Consumption	4.1-4.2	A
Output Power	20	W
Gain	43	dB
Input Stability	0	dB
Attenuation	31	dB
Connector Type	SMA/Female
Power Supply Wiring	Red+Black+Enable wire

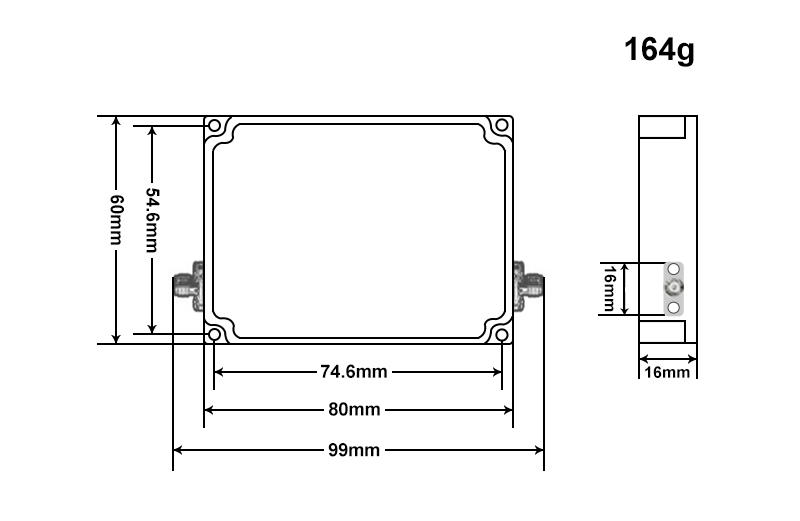

Dimensions	80×60×16	mm
Mounting Hole Pattern	80×60	mm
Operating Temperature	-40 to +65	°C
Enclosure Material	Aluminum
Vibration Resistance	Vehicle Mount Compatible

Key Features

Ultra-high frequency coverage across 10-18GHz spectrum
Low power consumption with high efficiency operation
Compact and lightweight design for easy portability
Wide coverage suitable for vehicle-mounted, fixed, and portable jamming systems

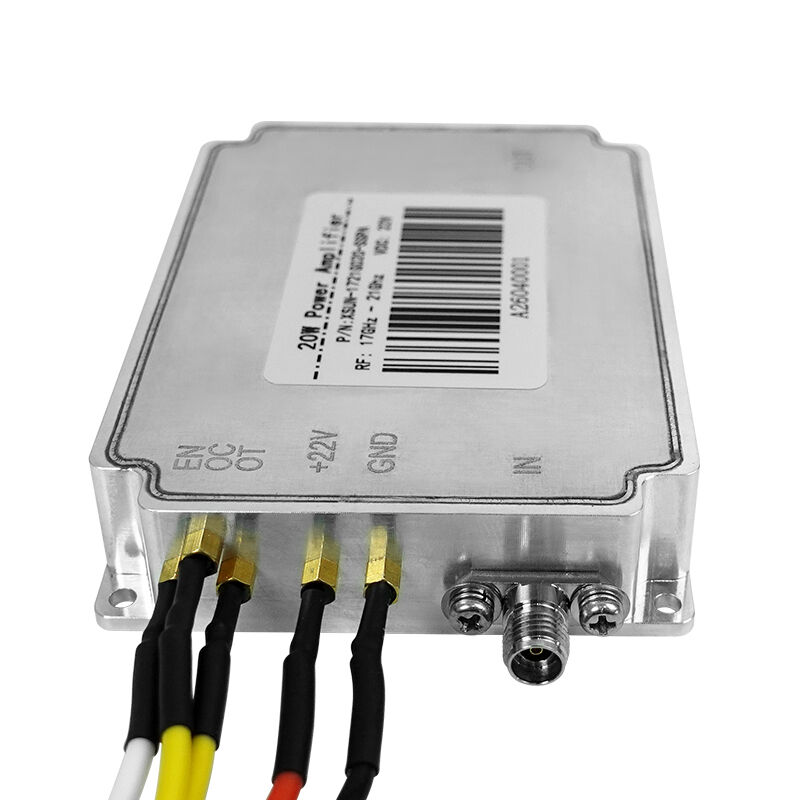

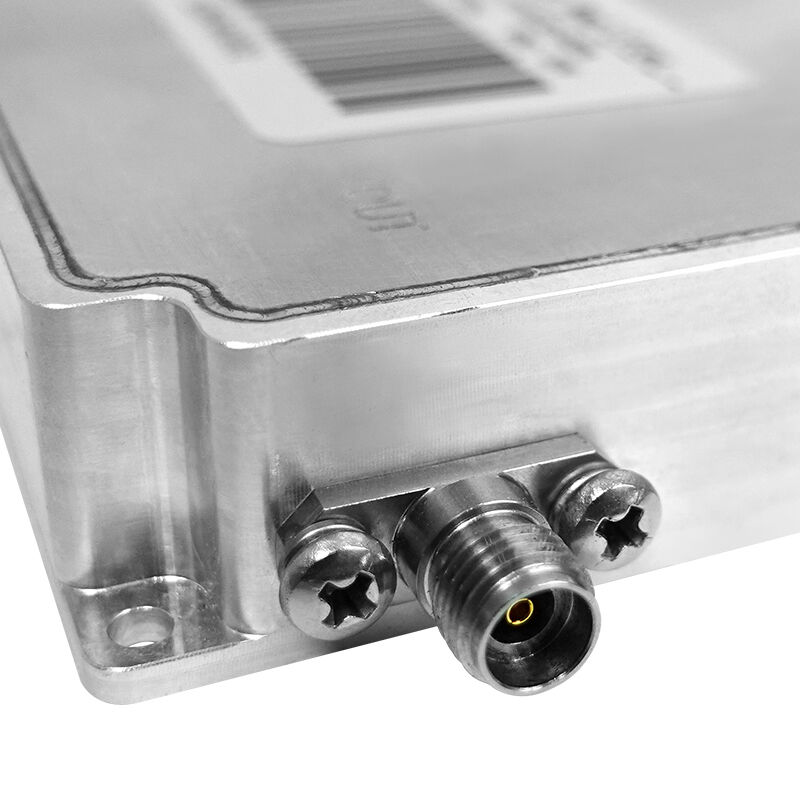

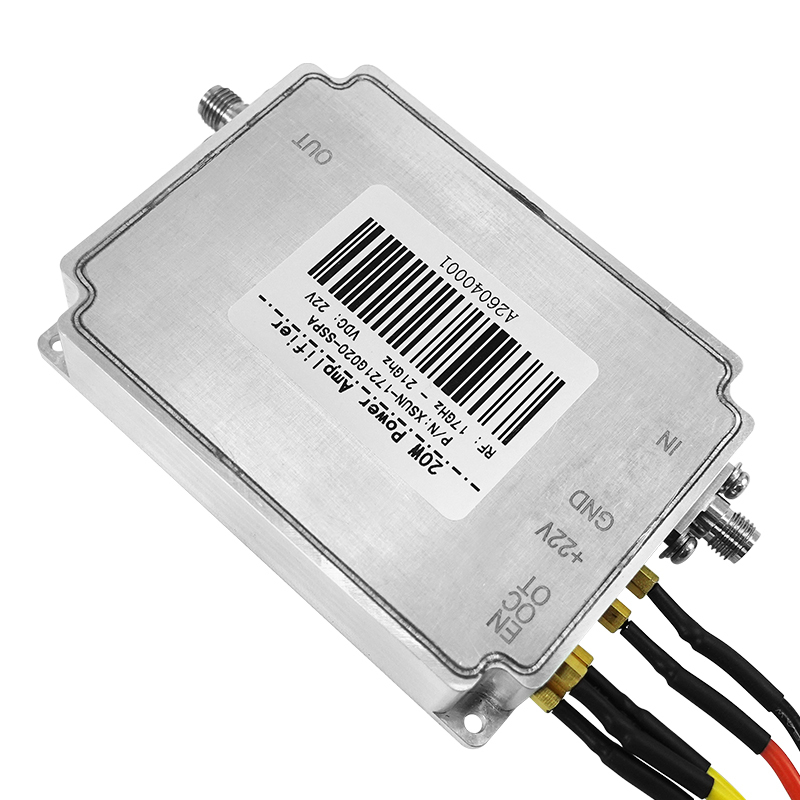

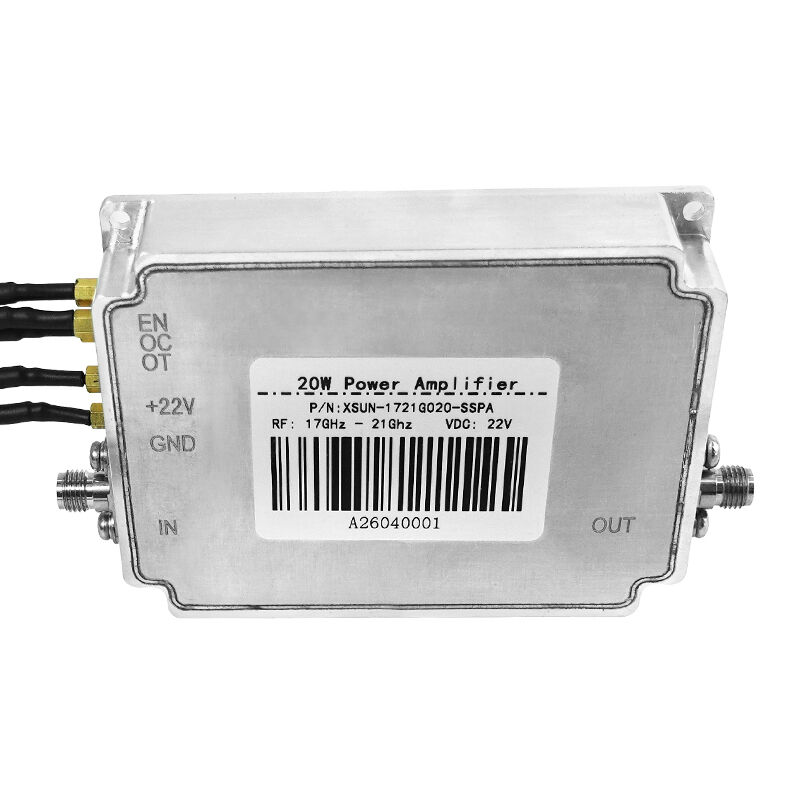

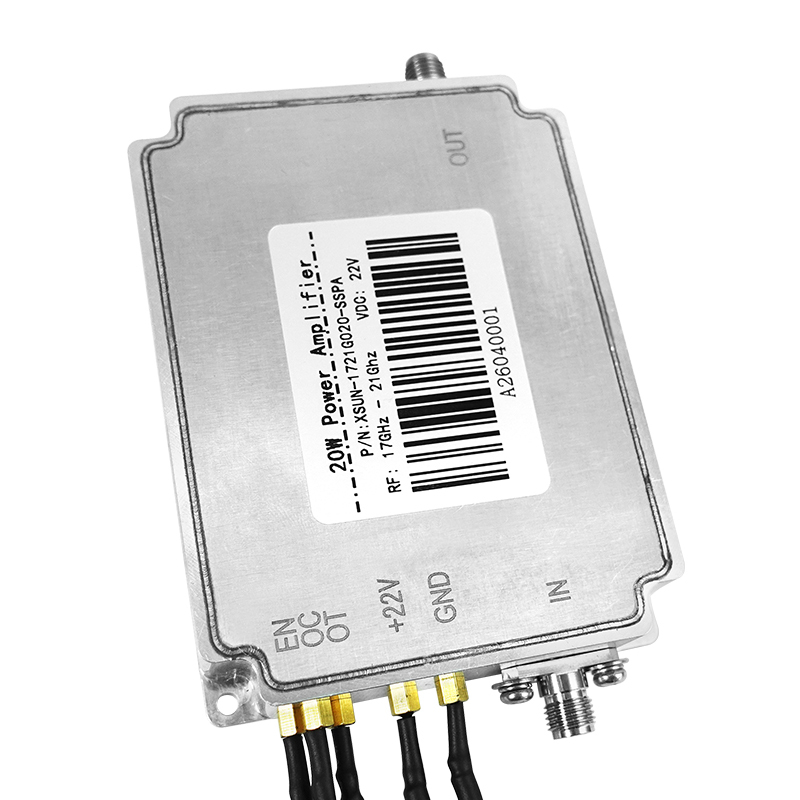

Product Images

Applications

Satellite Communication: Ground station signal amplification and satellite terminal signal enhancement to increase communication distance and stability
Radar Detection: Military and civilian radar systems for airborne, shipborne, and ground radar applications
National Defense & Aerospace: RF signal amplification for defense communication and aerospace equipment meeting military-grade standards
Microwave Testing: Core amplification component for microwave testing equipment and RF testing applications

Frequently Asked Questions

What is the minimum order quantity?

We support orders starting from one piece, but do not offer free samples.

What is the price of the 100W anti-drone jamming module?

Prices vary depending on the frequency band. Please contact us for specific pricing.

What payment methods do you accept?

We accept T/T, Alibaba, PayPal, USDT, Alipay, WeChat, and other payment methods.

What is the delivery time?

Orders are typically shipped within 5-7 days after placement.
