Industrial grade 70W 1.2ghz 2.4ghz 5.2ghz 5.8ghz uav Counter module for Security equipment

Grundlegende Informationen
Herkunftsort: China
Markenname: TeXin
Zertifizierung: CE ISO
Modellnummer: TX-HZ70W
Min Bestellmenge: 1
Preis: Verhandelbar
Verpackung Informationen: Dauerhafter Fall oder Kasten
Lieferzeit: 5-8 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 100000MONATEN
Detailinformationen
Leistung: 70W Frequenz: Maßgeschneidert
Stromspannung: 28V Aktuell: 6A
Gewicht: 278g Größe: 132*53*20mm
Anwendung: Anti -Drohnen -System Material: Aluminium
Stecker: SMA
Hervorheben:

Industrial grade UAV counter module

,

70W security equipment amplifier

,

2.4GHz 5.8GHz unidirectional amplifier


Produkt-Beschreibung

Industrial Grade 70W UAV Counter Module
Industrial grade 70W UAV counter module covering 1.2GHz, 2.4GHz, 5.2GHz, and 5.8GHz frequency bands for security equipment integration.
Product Overview
With the rapid proliferation of civilian and industrial drones, unauthorized drone activities pose significant threats to public security, critical infrastructure, industrial parks, and confidential areas. Our Industrial Grade UAV Counter Module is specifically engineered for security equipment, covering four core frequency bands (1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz) widely used in drone remote control, image transmission, and navigation systems.
This high-performance electronic interference component employs industrial-grade design standards to deliver stable, efficient, and reliable electronic countermeasure capabilities. By emitting high-power, stable RF interference signals, the module effectively disrupts communication links between drones and their controllers, forcing unauthorized drones to lose control, return to origin, execute emergency landings, or hover in place without causing physical damage.
Technical Specifications
Parameter Value Unit
Frequency 2350-2500 MHz
Test Voltage 28 V
Current 6 A
Output Power 70 W
Gain 53 dB
Output Stability 1 dB
Connector SMA/Female
Output Connector VSWR ≤1.30 (No power and VNA test)
Power Supply Red+Black+Enable wire
Enable Control High ON Low Off
Dimensions 220*113*21 mm
Mount Hole 220*113 mm
Weight 1148 g
Operating Temperature -40 to +65
Housing Material Aluminum
Vibration Resistance Car load OK
Key Features
  • Four Core Frequency Bands Full Coverage: Precisely covers 1.2GHz (1100-1300MHz), 2.4GHz (2400-2500MHz), 5.2GHz (5150-5350MHz), and 5.8GHz (5725-5850MHz) frequency ranges, fully covering mainstream drone working bands
  • Industrial-Grade Stable Performance: Utilizes advanced gallium nitride (GaN) power amplifier technology and digital signal processing chips with high power density and stable signal output
  • High Power & Long-Distance Interference: Maximum output power of 70W per frequency band with adjustable combined output power; omnidirectional interference radius of 800-1500m in open environments
  • Strong Environmental Adaptability: High-quality aluminum alloy housing with sandblasting oxidation treatment provides excellent heat dissipation, corrosion resistance, and impact resistance

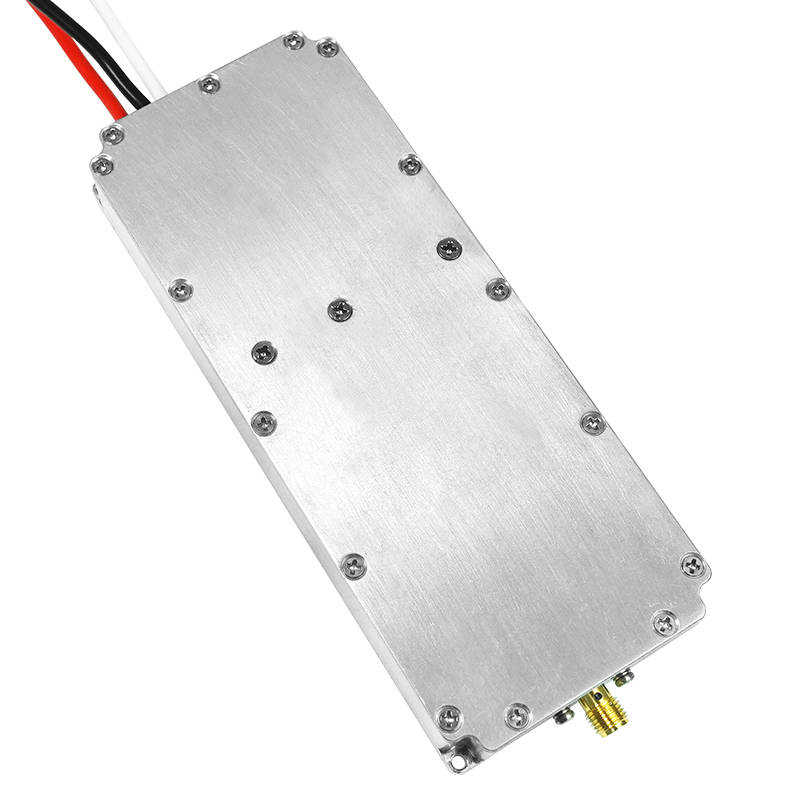

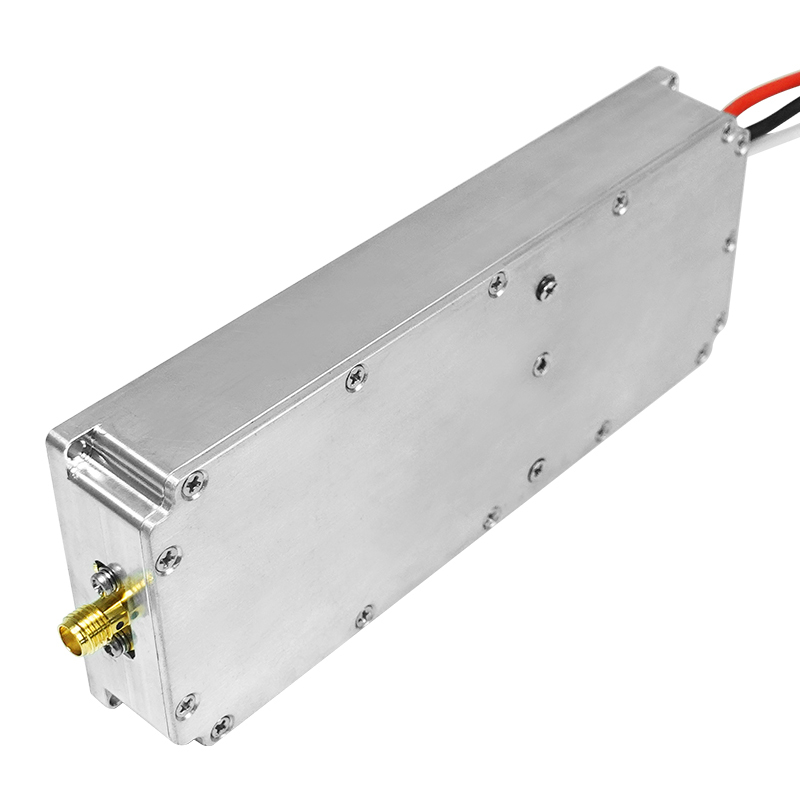

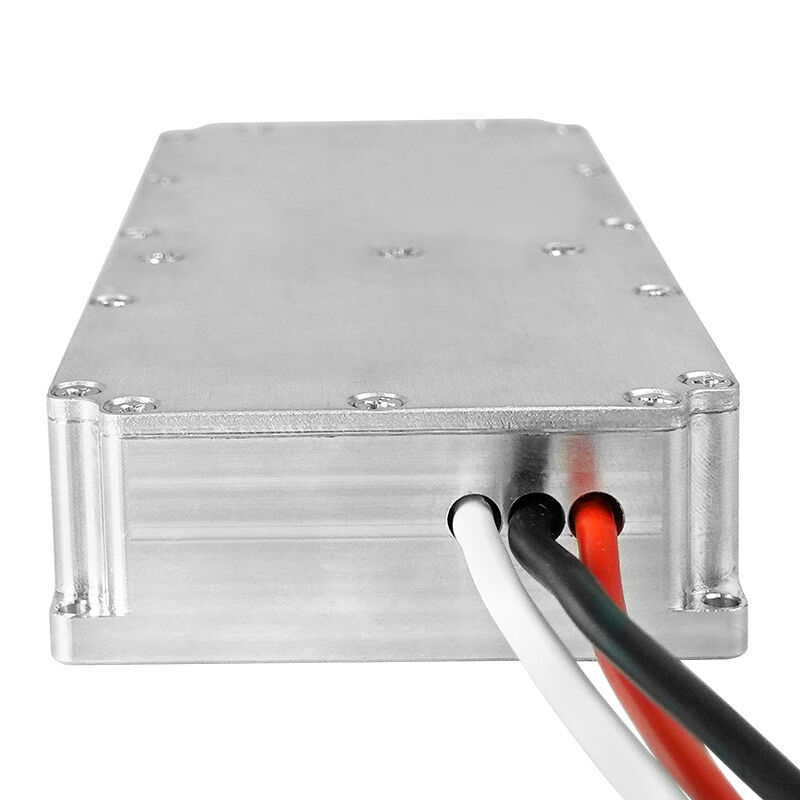

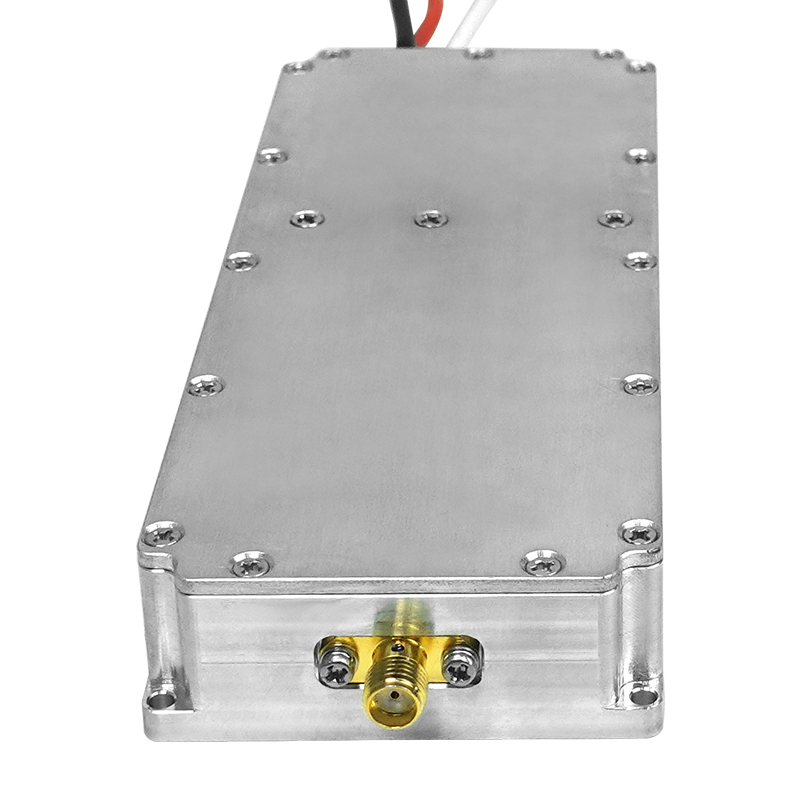

Product Images
Important Usage Notes
  • Use only with matched voltage specifications
  • Connect antenna before powering on the device
  • Cooling system required for prolonged operation
  • Optimal performance in areas with unobstructed views
