Startseite > Produkte> FPV-Störmodul> 22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory

22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory

22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory
22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory
22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory 22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory 22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory
Grundlegende Informationen
Herkunftsort: China
Markenname: TeXin
Zertifizierung: CE ISO
Modellnummer: TX-PD50W
Min Bestellmenge: 1
Preis: Verhandelbar
Verpackung Informationen: Dauerhafter Fall oder Kasten
Lieferzeit: 5-8 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 100000MONATEN
Bestpreis Kontakt
Detailinformationen
Leistung: 100W Frequenz: 300-2700 MHz
Stromspannung: 22V-32V Aktuell: 10A
Gewicht: 557G Größe: 175*65*23mm
Anwendung: RF-Projekt Material: Aluminium
Stecker: N
Hervorheben:

22V 32V GaN RF power amplifier

,

100W anti-drone amplifier module

,

N connector RF power amplifier

Produkt-Beschreibung

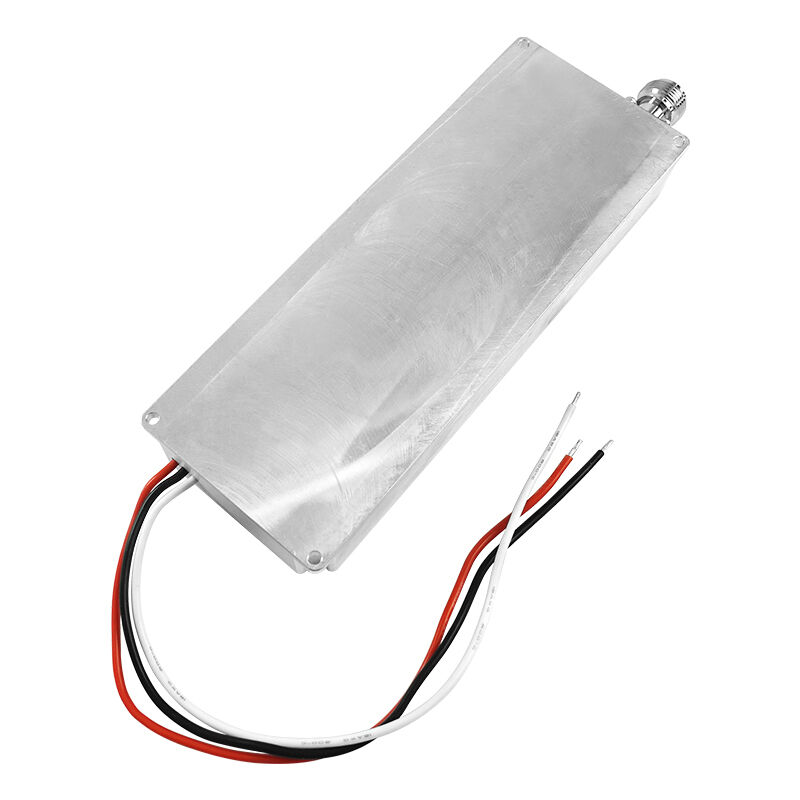

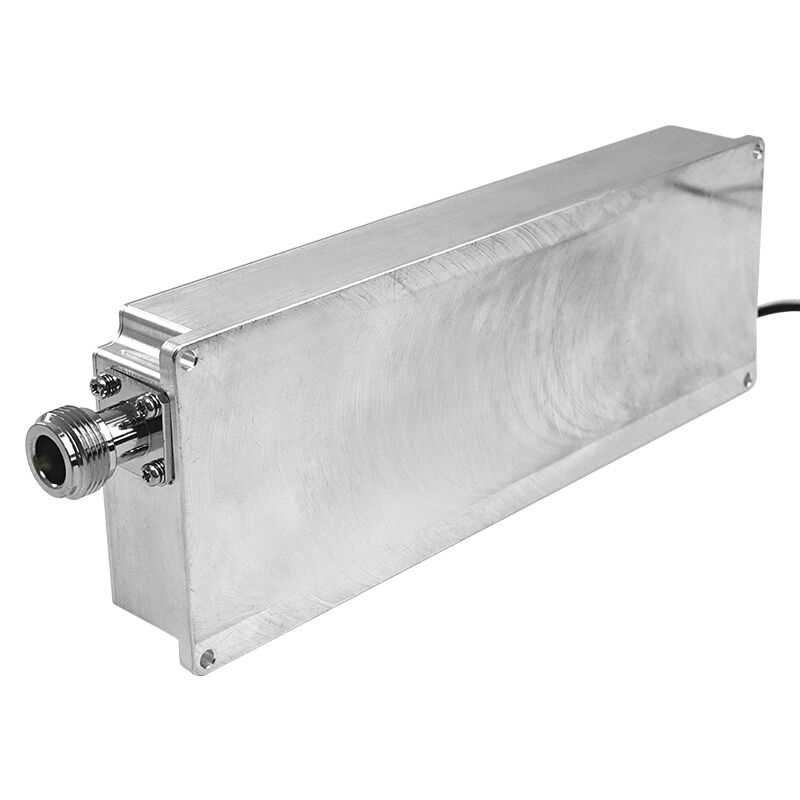

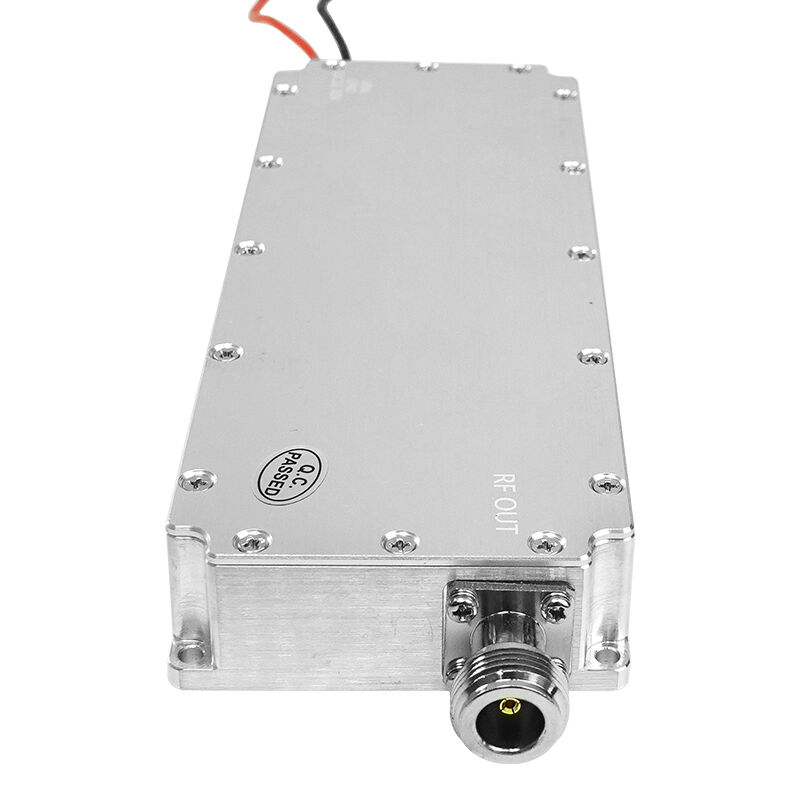

22V 32V Regulated 100W GaN RF Power Amplifier Module
This high-frequency GaN RF jamming module delivers 100W output power with 22V-32V regulated voltage and features an N-type connector. Designed for anti-drone countermeasure applications, it effectively disrupts communication between drones and their controllers, forcing them to land or return to base.
Product Overview
Manufactured by Texin Company using gallium nitride technology and housed in a waterproof, highly conductive aluminum casing, this amplifier offers high efficiency and excellent sensitivity resistance. Every unit undergoes 100% quality inspection to ensure reliability and long service life.
Technical Specifications
ParameterValueUnit
Frequency5925-6425MHz
Test Voltage22-32V
Current10A
Output Power100W
Gain50dB
Output Stability1dB
ConnectorN/Female
Output Connector VSWR≤1.30 (No power and VNA test)
Power SupplyRed+Black+Enable wire
Enable ControlHigh ON Low Off
Dimensions175×65×23mm
Mount Hole175×65mm
Weight557g
Operating Temperature-40 to +65℃
Housing MaterialAluminum
Vibration ResistanceCar load OK
Key Features
  • Compact structure for easy portability
  • 22V-32V wide voltage input range
  • 100% reliable quality assurance
  • N-type connector with 100W high power output
  • Effective against various types of drones
  • Ideal for airports, prisons, military zones, and factory security
22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory 0 22V 32V Regulated 100W GaN RF Power Amplifier Module N Connector Anti Drone Countermeasure Accessory 1
Important Usage Notes
  • Use only with matched voltage specifications
  • Connect antenna before powering on the device
  • Cooling system required for prolonged operation
  • Optimal performance in areas with unobstructed views
Frequently Asked Questions
What is the minimum order quantity?
We support orders starting from one piece, but do not offer free samples.
What is the price of the 100W anti-drone jamming module?
Prices vary depending on the frequency band. Please contact us for specific pricing.
What payment methods do you accept?
We accept T/T, Alibaba, PayPal, USDT, Alipay, WeChat, and other payment methods.
What is the delivery time?
Orders are typically shipped within 5-7 days after placement.
