Detailinformationen

Marke:	Texin	Typ:	Antenne mit Feder
VSWR:	≤1,5	Leistung:	50W
Frequenz:	100–500 MHz, 700–3000 MHz (kundenspezifisch)	Gewinn:	8dbi
Betriebstemperatur:	40–80 °	Außenhülle Größe:	1210 mm
Gewicht:	2,05 kg	Stecker:	N Stecker
Aus Schalenmaterial:	Aluminium	Arbeitstemperatur:	-20 ~+70 ℃
Hervorheben:	high gain dipole oscillator antenna , omnidirectional dual-band drone antenna , spring base anti-drone antenna

Produkt-Beschreibung

High Gain Spring Base Omnidirectional Dipole Oscillator Dual-Band Antenna

This omnidirectional dipole dual-band antenna features manually modulated frequency bands, supports full-band customization, and is equipped with a spring and suction cup at the bottom to cushion vibrations. It can be used in conjunction with vehicle-mounted drone countermeasure equipment. It is an essential transmission antenna for drone countermeasure equipment, low-altitude security systems, and portable jamming devices.

Shen Zhen Texin Electronics Co., Ltd has specialized in anti-drone devices, accessories, and antennas for more than 10 years. Product quality is guaranteed.

Product Specifications

Parameter	Value	Unit
Frequency	100-500MHz 700-3000MHz (customizable)	MHz
Output	50W/100W (customizable)	-
Gain	8-10	dBi
Flatness	±3	dBm
Work Voltage	50Ω	dB
Input Connector Type	N	-
Lightning Protection	DC Ground	dB
Cable Type	RG316	-
Output Connector VSWR	≤2 (No power and VNA test)	-

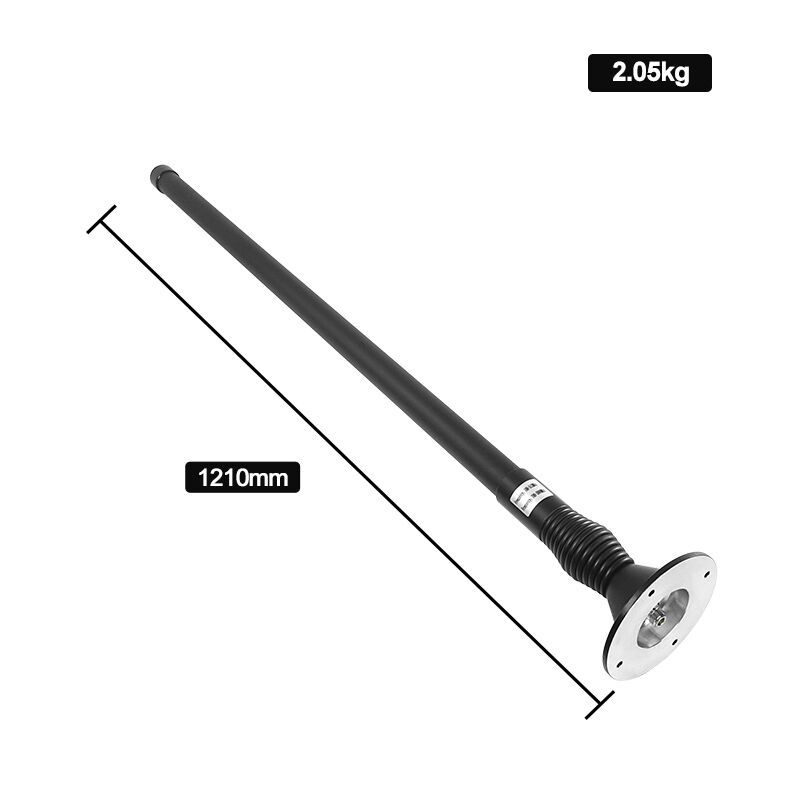

Outer Shell Size	1210	mm
Material	Aluminum	-
Weight	2.05	kg
Work Temperature	-20~+70	℃
Installation	Machine installation	-
Vibration Requirement	Car load OK	-

Available Options

Wattage: 10W, 20W, 30W, 40W, 50W

Frequency Bands: 100MHz, 200MHz, 300MHz, 1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz

Product Features

Full-band, all-around jamming capability effectively counters UAV image transmission signals (2.4GHz, 5.2GHz, 5.8GHz) and GNSS navigation frequencies

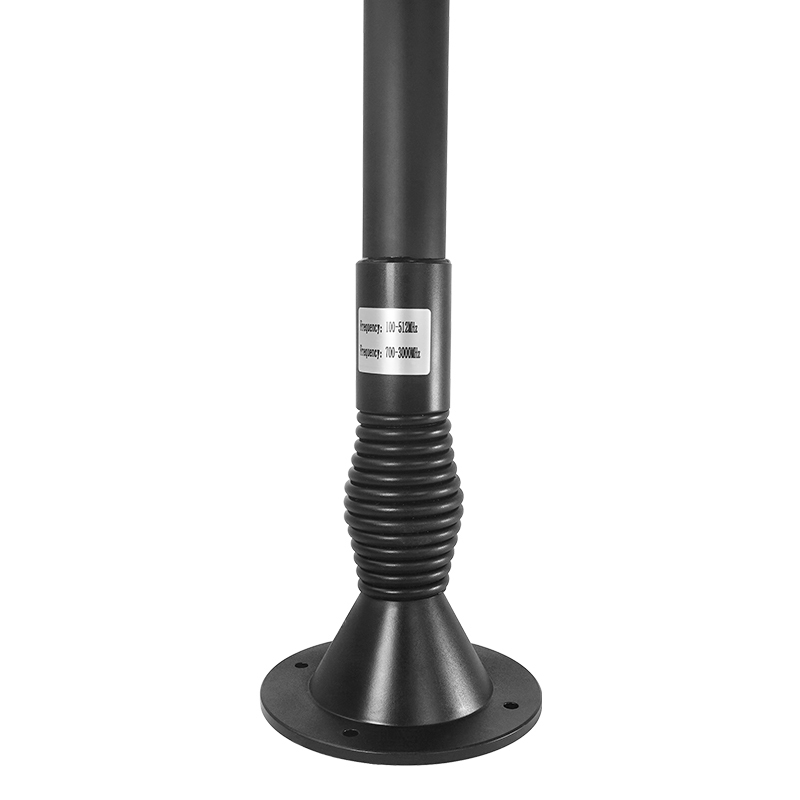

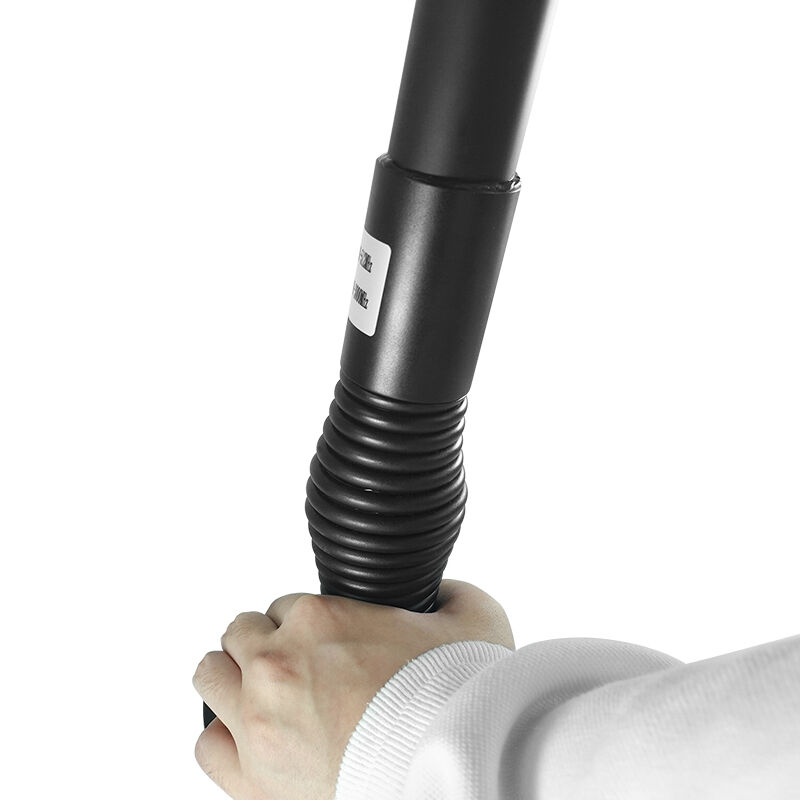

The spring structure can buffer vibrations and resist minor impacts, making it suitable for in-vehicle/portable devices
Two frequency bands integrated into one antenna, stable output and high cost performance
The shell is made of copper, which can withstand high-intensity impact
Adopt a high-quality telecommunications-grade feeder, which can be bent at any angle
The antenna root is reinforced, and the connection is more reliable and durable

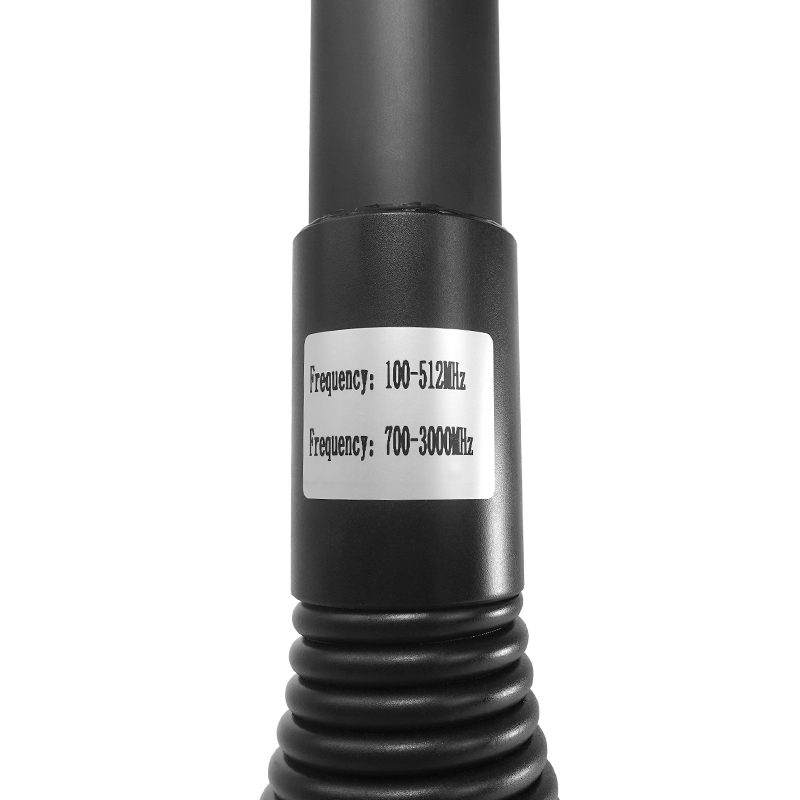

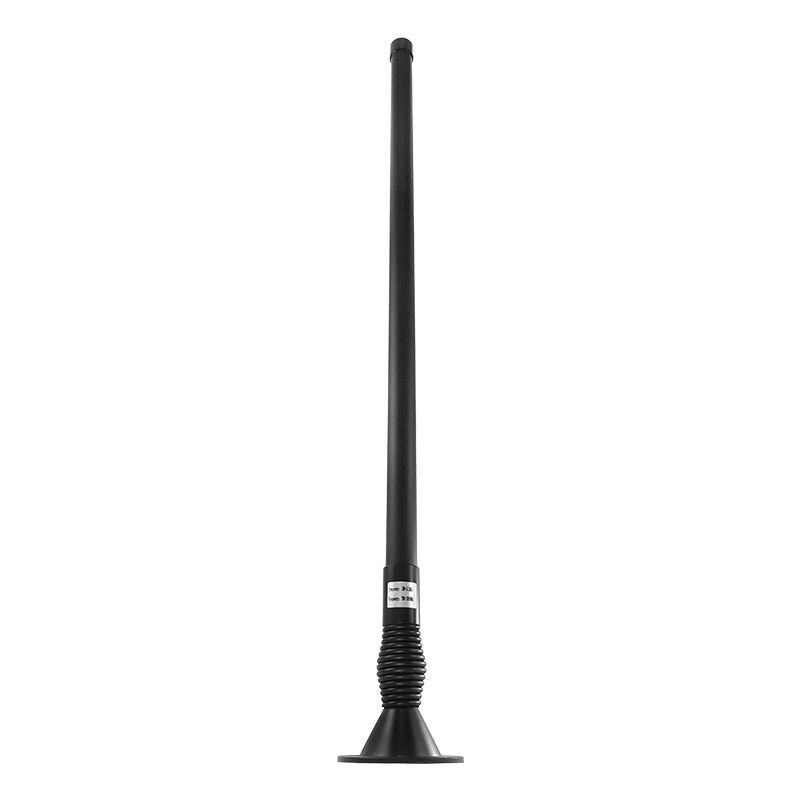

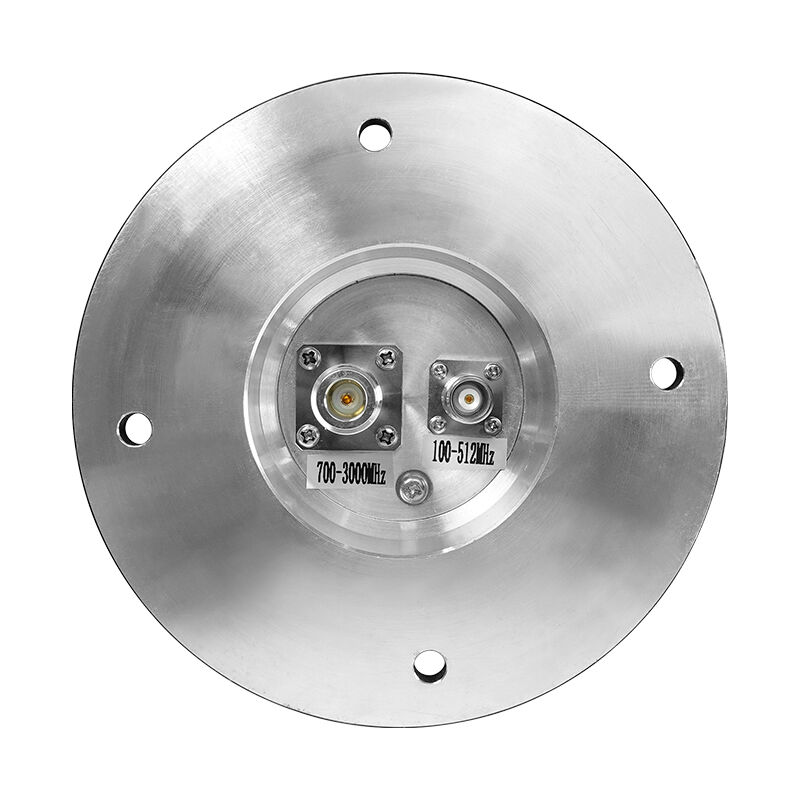

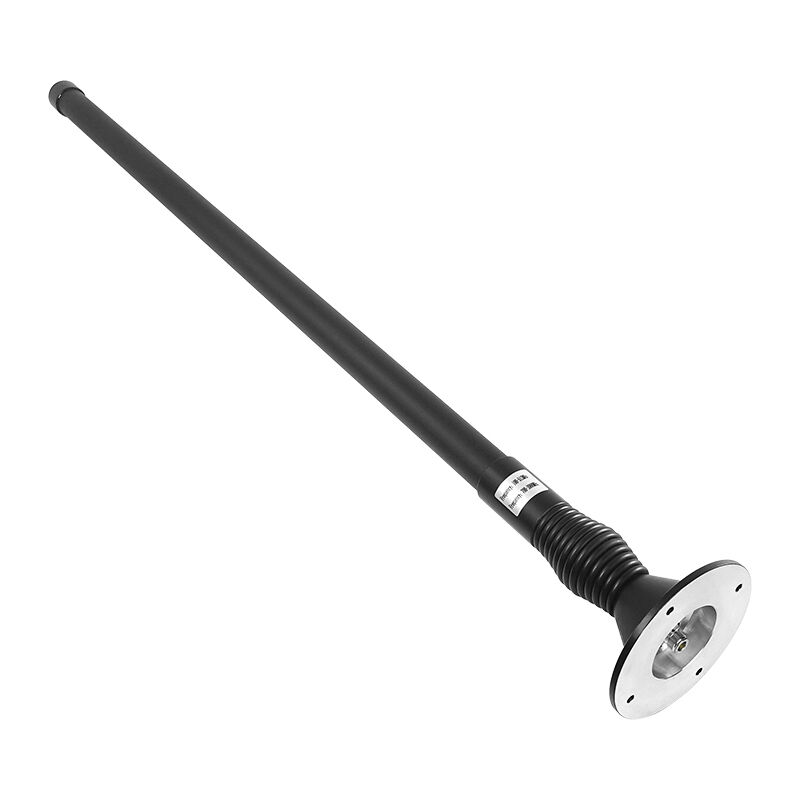

Product Images

Product Application

Frequently Asked Questions

Are you a manufacturer?

Yes, our factory is located in Longgang District, Shenzhen. Welcome to visit us here.

MOQ?

1 to 100 pieces

Payment term?

T/T, Alibaba Trade Assurance (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.

How to proceed with an order?

A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment

What to do if I receive defective products?

Our strict quality control ensures a 100% pass rate. However, products can be damaged in transit. Please share photos or videos of any defective products, and we will provide compensation or send replacement parts.

Factory Pictures

Größe und Tag:

Herkunftsort:	China
Markenname:	TeXin
Zertifizierung:	SGS,ISO9001

Min Bestellmenge:	1
Preis:	Verhandelbar
Verpackung Informationen:	Dauerhafter Fall oder Kasten
Lieferzeit:	3-5 Tage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	50,00PCS/Month
